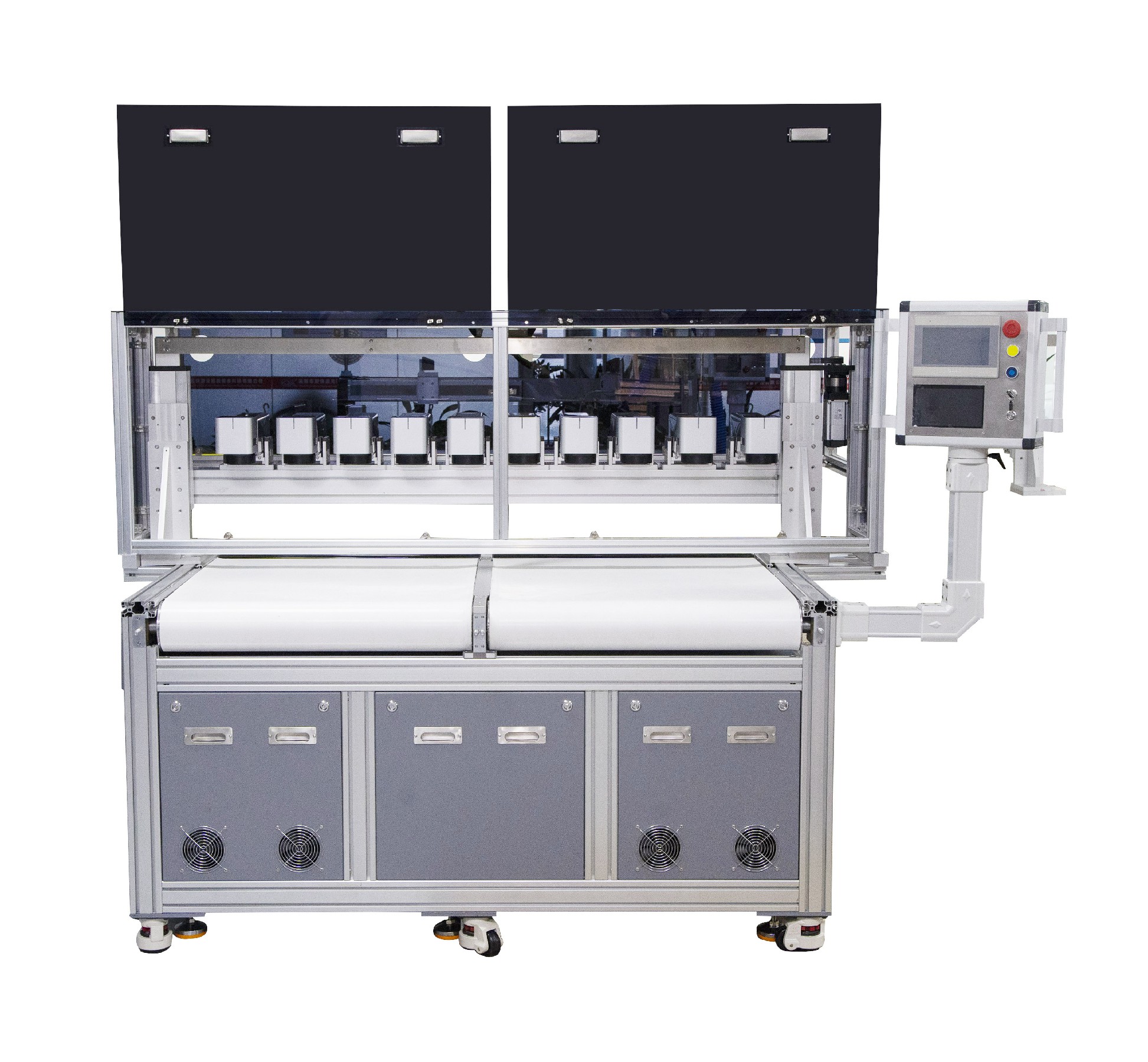

Automatic Brake Pad Cleaning Machine

Automatic Brake Pad Cleaning Machine

Description：The automatic brake pad cleaning machine features a single-axle, multi-wheel design: The transition shaft transmission is smooth and efficient, preventing step loss, and the structure is compact and silent.

The internal servo belt drive reduces the machine’s size and protects the servo motor from external damage.

The laser focus fine-tuning device ensures the several laser beams are at the optimal focal length for cleaning operations.

The conveyor belt anti-slip device ensures smooth and stable operation during operation.

Technical Specs

Laser power	1200W
Supply voltage	220/AC
Current consumption	Pout=ponm/5A
Fiber optic cables	5 meters standard
Operating temperature	0-40℃
Storage temperature	0-40℃
Peak power	35KW
Cooling method	Air cooling
Laser Class	Level 4
Laser wavelength	1064nm
Warm-up time	10-30m
Machine Size	L2029W880H1548 mm
Machine weight	500/kgs

Application and Samples

Application and Samples：

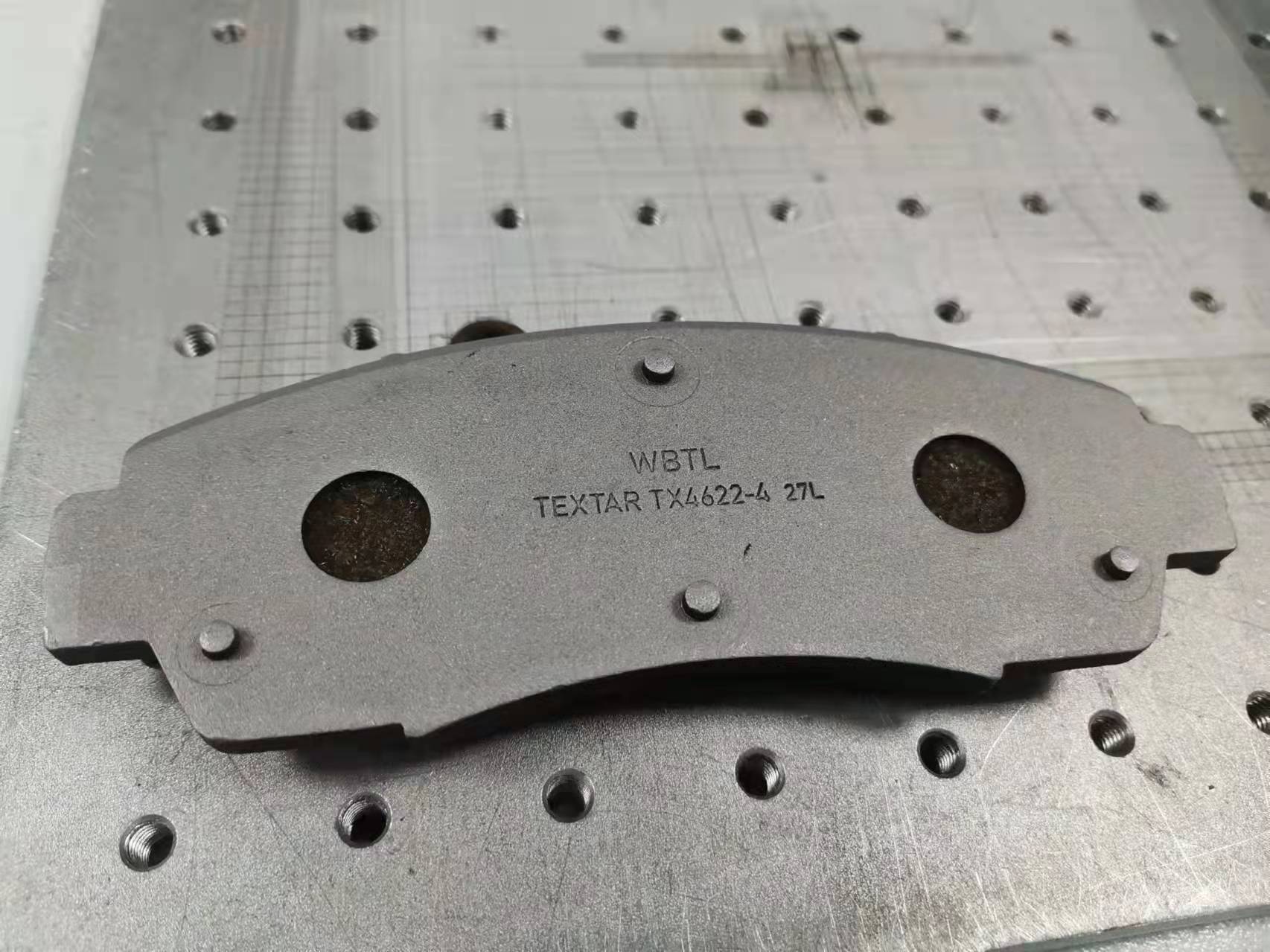

The core of the automatic brake pad cleaning machine is used in the key process of brake pad production. It can achieve standardized and efficient automatic cleaning of impurities such as oil, dust, burrs, etc. on the surface of the metal back plate and friction material, ensuring the quality of subsequent painting, bonding and assembly.
