Large Power Rate Cabinet Laser Cleaning Machine
Large Power Rate Cabinet Laser Cleaning Machine
Description:Fast cleaning speed: 500W of power means higher energy output per unit time, enabling faster removal of rust, paint, and coatings. Compared to 200W or 300W equipment, its cleaning efficiency is typically increased by 50% to several times, significantly shortening work hours and reducing labor costs. It can handle thicker and more stubborn contaminants: For thick rust (millimeter-level), dense mill scale, multiple layers of paint, or hard coatings such as epoxy resin, 500W of power provides sufficient energy to vaporize or strip them, whereas lower-power equipment may be unable to remove them, requiring repeated cleaning or failing to do so at all.
Technical Specs
| Items | Parameters |
| Cleaning Power | 500W-1000W |
| Max. Power | 3.4KW/4.3KW |
| Power Voltage | AC 110/220V |
| Cooling Method | Water Cooling |
| Laser Class | Level 4 |
| Pulse Energy | 20mJ/30mJ |
| Fiber Optical Cable | 5-10m(Customizable) |
| Laser Wavelength | 1064nm |
| Scan Width | 1-160mm |
| Preheat Time | 10-30s |
| Working Condition | Flat place without vibration and impact |
| Working Temperature | 0-60 ℃ |
| Storage Temperature | -10~+60℃ |
| Machine size | L1042 x W630 x H1035 mm |
| Net Weight | 133Kgs/166Kgs |
Application and Samples
Application and Samples:
The 500W handheld laser cleaning machine is particularly suitable for the following applications:
Heavy industrial manufacturing and maintenance: rust and paint removal for shipbuilding, large steel bridge structures, and port machinery.

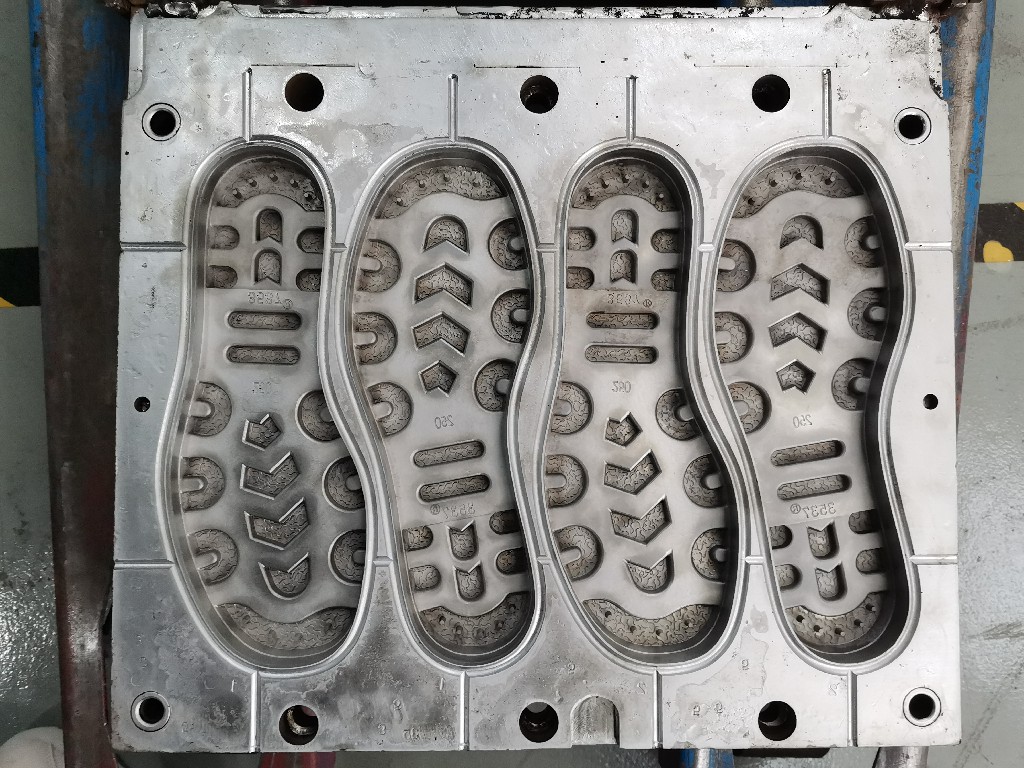

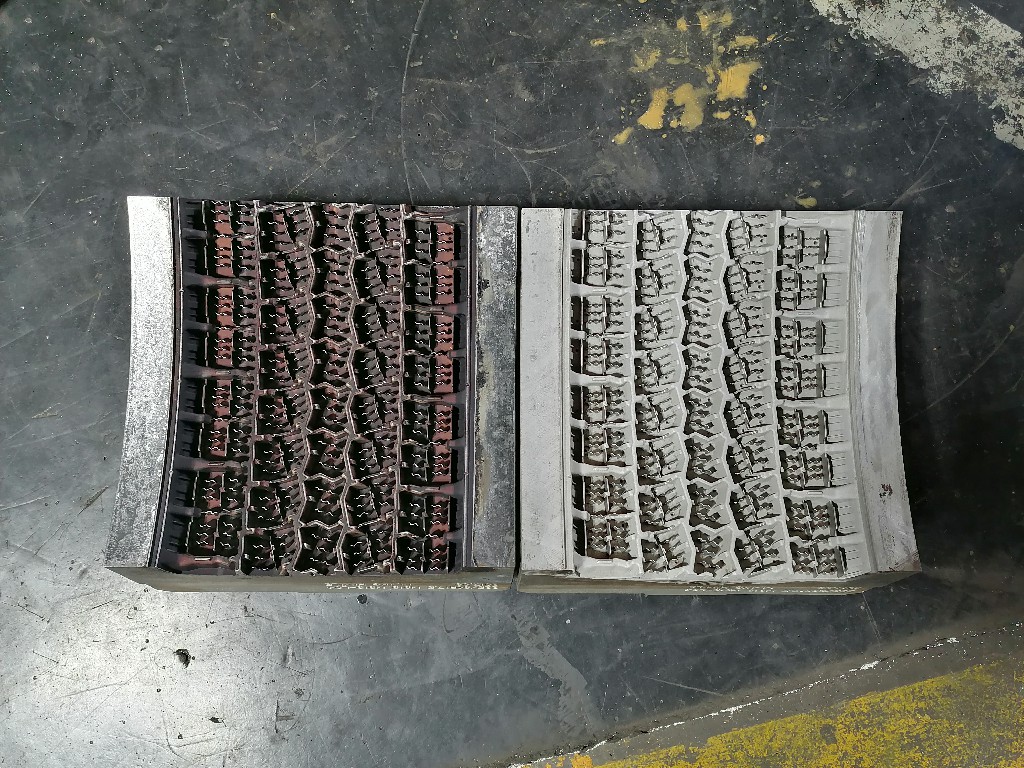

Mold cleaning: rapid, non-destructive cleaning of tire molds, plastic molds, and die-casting molds.
Aerospace: aircraft skin paint removal and engine component cleaning.
Automotive manufacturing: pre-weld rust removal and pre-painting treatment for vehicle bodies.
Cultural relic preservation and restoration: precise removal of surface contaminants from stone carvings and metal artifacts.
