AGV 在线自动清洗机


AGV 在线自动清洗机

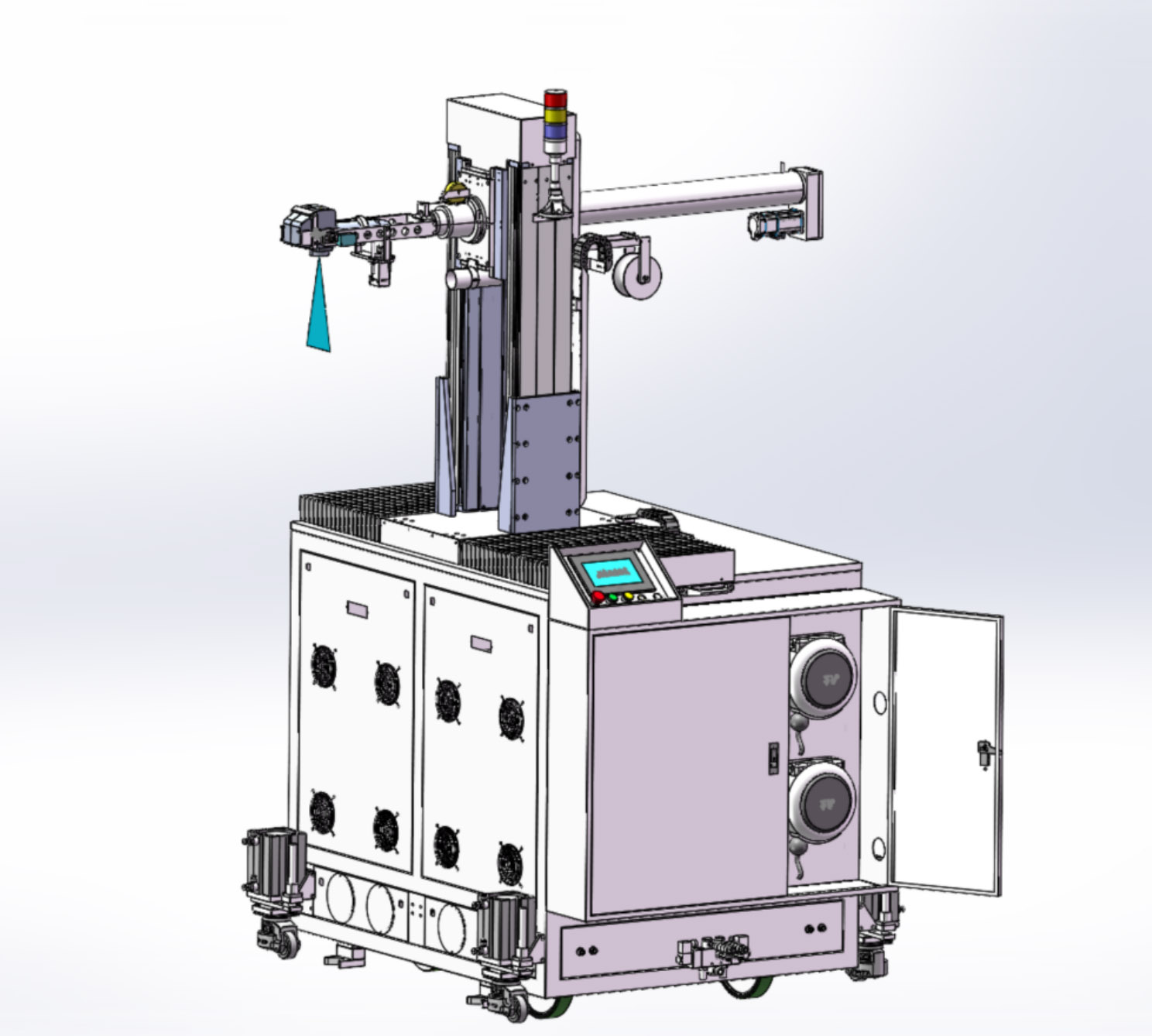

说明:The AGV automatic cleaning machine is an intelligent device equipped with an automated guided vehicle (AGV) system and cleaning actuators. It can autonomously clean surfaces, equipment, and other objects, without the need for human operators, following a pre-set path or real-time navigation. Its main components include a laser host, cleaning gun, teaching system, AGV trolley, freezer, control system, laser control system, lifting device, telescopic cylinder, and gantry cleaning frame.
技术规格
| 产品参数 | 技术参数 |
| 机器型号 | CKJG-500w-05 |
| 激光波长 | 1064 纳米 |
| 最大激光功率 | 3 千瓦 |
| 运行模式 | 连续 |
| 光缆长度 | 10 米 |
| 标准输出光纤连接器 | QCS 标头 |
| 重复性 | 士0.05毫米 |
| 脉冲频率 | 50Hz 连续可调 |
| 加工范围 | 600×2000 |
| 瞄准和定位 | 红灯 |
| 电源要求 | 220 伏/50 赫兹/60 赫兹/60 安培 |
| 使用环镜 | 恒温 |
| 冷却方式 | 水冷、风冷 |
| 激光主机尺寸 | 500x420x120 |
申请和样本
申请和样本:
It is widely used in factory workshops, logistics warehouses, supermarkets, hospitals and other large-scale scenes with high cleanliness requirements, replacing traditional manual cleaning.
